Separador magnético de tambor húmedo

The Wet Drum Magnetic Separator is used to efficiently separate magnetic particles from non-magnetic materials in mineral processing, featuring a rotating drum design and customizable magnetic field strength for high-purity separation.
Magnetic SeparatorWet Drum Magnetic Separator
  • Tamaño de alimentación: ≤3 mm
  • Capacidad: 0.5-180 t/h

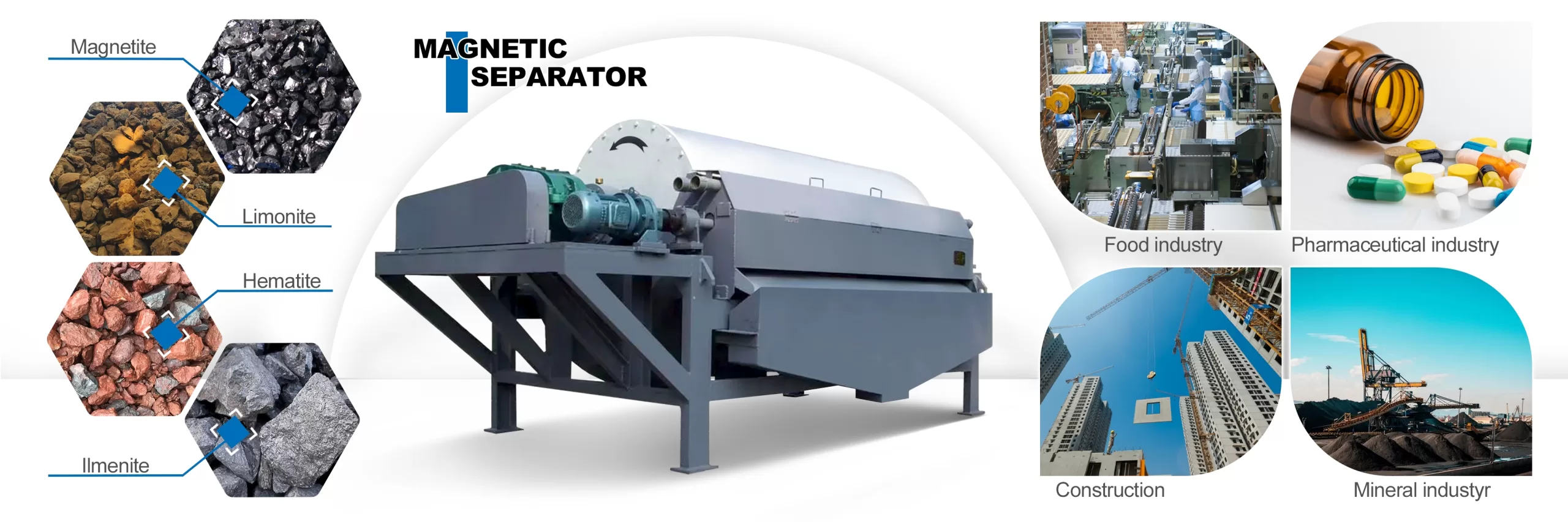

  • Application: Commonly used for wet magnetic separation of pyrite, magnetite, ilmenite, manganese, iron ore, limonite and other materials with particle size below 3mm.

What is wet drum magnetic separator

The Wet Drum Magnetic Separator is a commonly used magnetic separation equipment, primarily employed in mineral processing to separate ferromagnetic materials from non-magnetic substances through the action of a magnetic field. This equipment is particularly suitable for processing finely grained minerals, and the presence of water enhances the efficiency of the magnetic separation process.

Features of Wet Drum Magnetic Separator:

  1. Sturdy Construction: The separator is built to withstand abrasive materials and operate effectively in corrosive environments, ensuring durability and longevity.
  2. Continuous Material Flow: Its rotating drum design facilitates a seamless flow of material through the magnetic field. This design efficiently captures iron particles, resulting in a high-purity final product.
  3. Customizable Options: We offer customized equipment or adjustable magnetic field strength to cater to specific processing needs. This flexibility ensures optimal performance and maximum efficiency for a wide range of applications.
  4. Versatile Sizes and Configurations: The drum magnetic separators are available in different sizes and setups, enabling high-volume material processing to meet diverse industrial requirements.

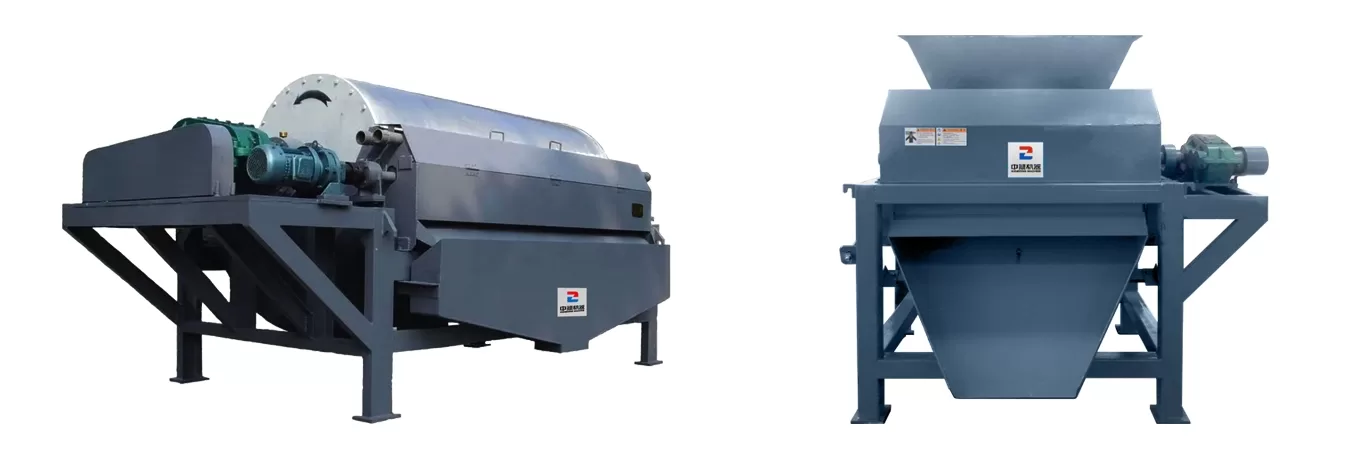

Features of Wet Drum Magnetic Separator

Estructura of Wet Drum Magnetic Separator

Wet Drum Magnetic Separators typically consist of a magnetic drum, transmission system, tank, feeding device, and discharge device. The magnetic drum, a crucial component, is equipped with high-performance permanent magnets or electromagnets that generate a powerful magnetic field. The tank holds the pulp, while the feeding device evenly distributes the pulp into the magnetic separator. The discharge device is responsible for removing the separated minerals.

Structure of Wet Drum Magnetic Separator
Structure of Wet Drum Magnetic Separator

Principio of Wet Drum Magnetic Separator

The working principle of the Wet Drum Magnetic Separator relies primarily on the attractive force of the magnetic field on magnetic substances. As the pulp flows into the tank and passes over the magnetic drum, magnetic materials are attracted to the drum’s surface due to the magnetic field, while non-magnetic substances flow away with the pulp. As the drum rotates, the magnetic materials attached to it are transported to the discharge area and removed via the discharge device. This process achieves the separation of magnetic and non-magnetic substances.

Principle of Wet Drum Magnetic Separator
Principle of Wet Drum Magnetic Separator

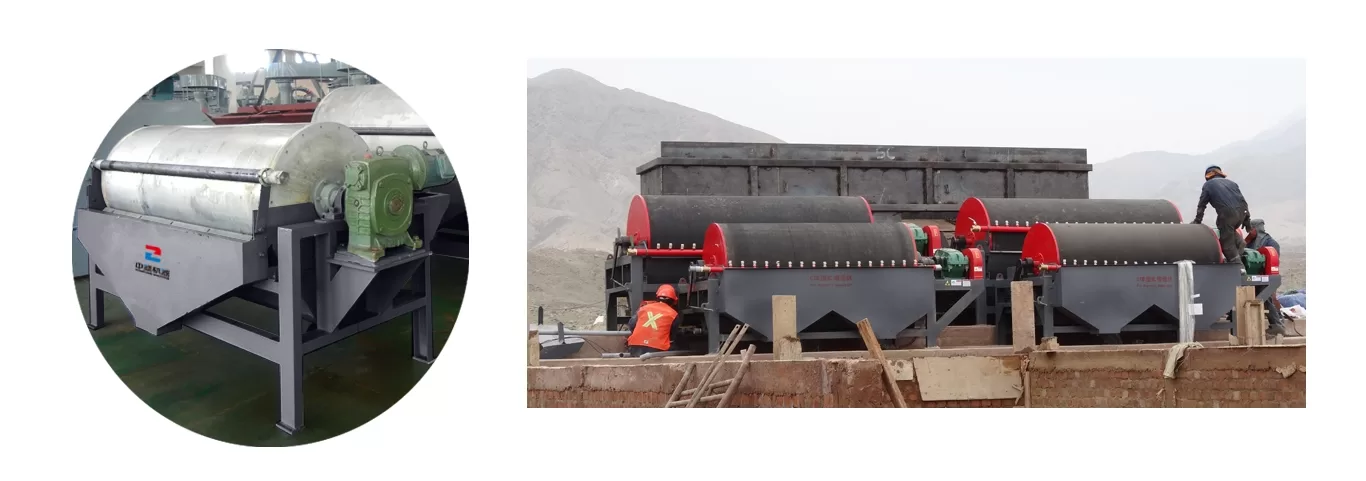

Customer Case of Wet Drum Magnetic Separator

Separador magnetico

Specification of Wet Drum Magnetic Separator

ModeloDiámetro de la cáscara
(Mm)
Longitud de la concha
(Mm)
Rotación de caparazón
velocidad (r/min)
tamaño de la alimentación
(Mm)
Capacidad de procesamiento
(t/h)
Potencia (kW)
CTB60126001200<352 - 010 - 201.5
CTB60186001800<352 - 015 - 302.2
CTB75187501800<352 - 020 - 452.2
CTB90189001800<353 - 040 - 603
CTB90219002100<353 - 045 - 603
CTB90249002400<283 - 045 - 704
CTB101810501800<203 - 050 - 755.5
CTB102110502100<203 - 050 - 1005.5
CTB102410502400<203 - 060 - 1205.5
CTB121812001800<183 - 080 - 1405.5
CTB122412002400<183 - 085 - 1807.5
CTB123012003000<183 - 0100 - 1807.5
CTB153015003000<143 - 0170 - 28011
