Fine crusher is also called tertiary crusher, which adopts the principle of “stone hit stone” to crush materials. It upgrades the traditional three crushing stages to the two crushing stages.

fine crusher 2Fine Crusher
  • Discharging Size:5-10mm
  • Production Capacity:12-1000 TPH
  • Applied Material: Granite, basalt, limestone, pebble, cement clinker, quartz sand, iron ore, bauxite, construction waste, glass and some metal, etc.

Aplicaciones de la trituradora fina ZDM

The fine crusher is mainly suitable for grinding and processing in metallurgy, building materials, chemical, mining, railway, water conservancy and other industries. It is used before the ball mill to increase the production efficiency of the ball mill by 50%.

It is especially suitable for fine and medium crushing of materials with hardness below 9 such as quartz, feldspar, calcite, marble, ceramics, iron ore, copper ore, gangue, phosphate rock, granite, basalt, silicon carbide, corundum, insulation materials and other brittle materials.

Aplicación de trituradora fina

La trituradora fina tiene varias ventajas:

1.High crushing efficiency. The use of grate plate, rigid hard extrusion crushing and solid rotor body greatly improve the crushing efficiency.

2.Good crushing effect. The fine crusher can arbitrarily control the discharging size of materials, so the required material size can reach more than 95% and ideal material size control and classification can be realized.

3.Small wear parts wearing. Compared with hammer crushers and impact crushers, it only wears the hammerhead, while the wheel core and hammer frame have no wear.

4.Simple installation. It is light in weight, diverse in installation (removable installation) and easy to operate.

5.Convenient maintenance. It only needs to lift the upper case and open the lowercase during maintenance. A person can complete a comprehensive inspection and maintenance of the whole machine within 20 minutes with a wrench.

6.Timely discharging. Three discharging channels are adopted to discharge qualified materials in time.

7.Adjustable discharging. The discharging granularity of the fine crusher can be adjusted, and the adjusting plate can be turned over at both ends.

Structure of the fine crusher

The fine crusher is mainly composed of the rotary part, guard plate and box part.

Some non-overlapping hammer carriers are arranged on the wheel core of the rotary part. The hammer head, whose width is larger than the hammer carrier and the wheel hub, is fixed on the hammer carrier. The wheel core is composed of several wheel hubs, which are fixed on the main shaft. The two ends of the main shaft are supported on the frame with rolling bearing seats.

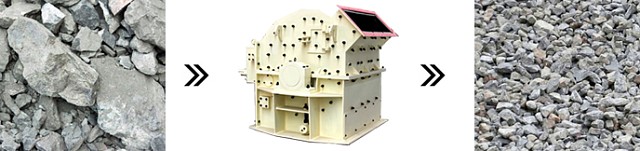

Comparación de materiales antes y después de la trituración por trituradora terciaria

Principio de funcionamiento de la trituradora fina

Una vez que se completa el proceso de trituración, los materiales triturados se expulsan o expulsan de la máquina.

trituradora fina

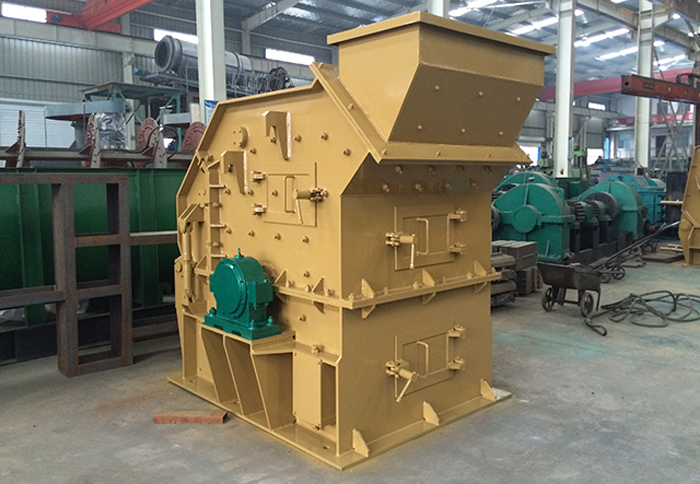

Trituradora fina en fábrica

Especificación General

Trituradora de impacto terciaria PXJRotorø×Ancho
(mm)
Especificaciones800 × 400800 × 600800 × 8001010 × 10101200
× 1200
1400
× 1400
1600
× 1600
1800
× 1800
Tamaño de apertura de alimentación (mm)400 × 185500 × 250550 × 3001000 × 3501200
× 450
1500
× 500
1600
× 550
1800
× 800
tamaño de la alimentación (mm)<120<180<180<180<180<190<190<190
Tamaño de descarga (mm)0 - 100 - 100 - 100 - 100 - 100 - 100 - 100 - 10
Rango ajustable de apertura de descarga (mm)5 - 505 - 505 - 505 - 505 - 505 - 505 - 505 - 50
Clinker de cemento(t/h)10 - 30104020 - 4525 - 5535 - 9050 - 15085 - 210125 - 270
Piedra caliza(t/h)18 - 4523 - 5528 - 6535 - 7545 - 11050 - 15095 - 260140 - 310
Potencia (kW)4P 37KW4P 45KW4P 45KW4P 55KW6P 110KW6P 160KW4P 250KW4P 315KW
Peso teórico3.94.5610.514.4223549.7
